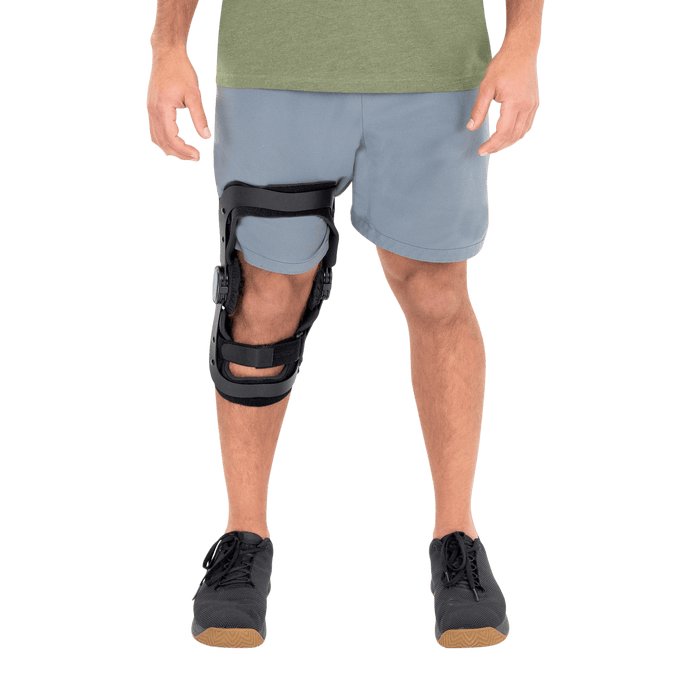

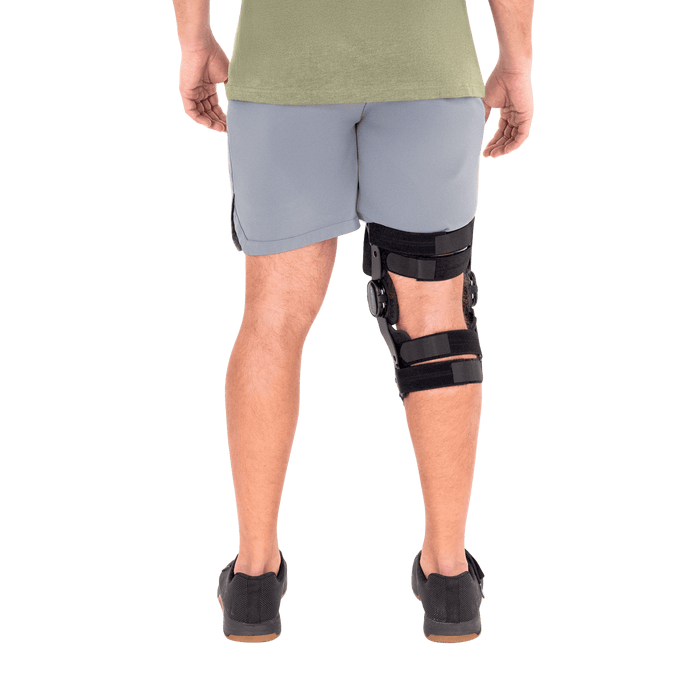

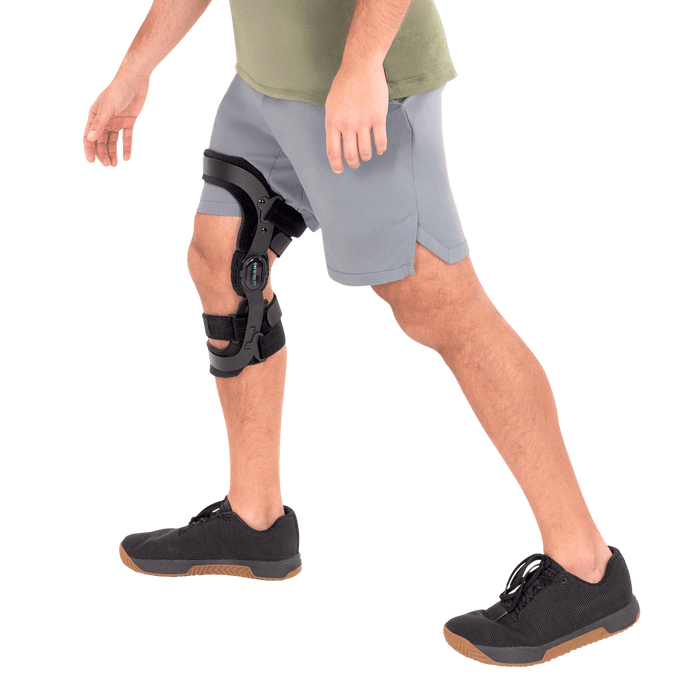

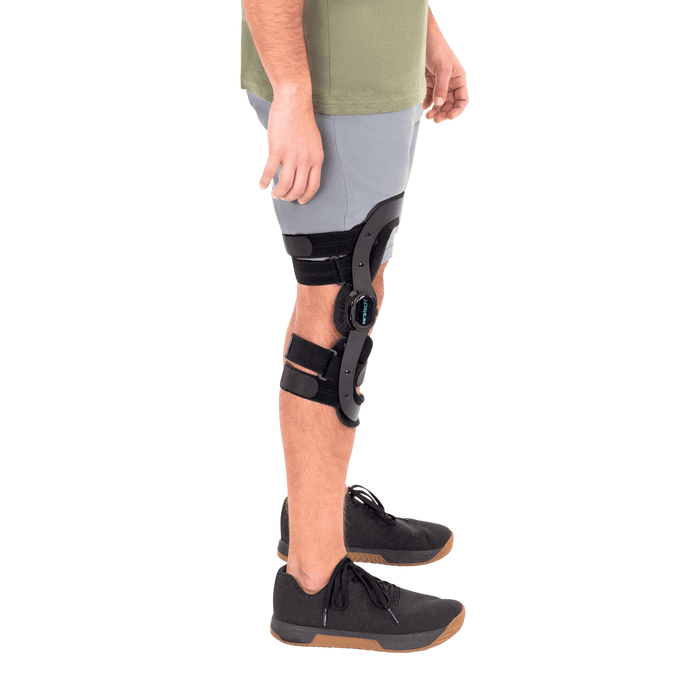

The Coretech ACL Knee Brace is a lightweight, rigid solution engineered to deliver controlled support and protection during post-operative recovery or rehabilitation following ACL injuries. This double-upright knee orthosis features a polycentric hinge with adjustable flexion (0°–120°) and extension stops (0°–45°), giving clinicians precise control over range-of-motion settings throughout recovery.
Bilateral uprights provide medial-lateral support and rotational control, while integrated valgus and varus angle adjustments ensure optimal stabilization of the knee joint. Four numbered hook-and-loop straps—two on the thigh and two on the calf—simplify application and guarantee secure, consistent placement. All straps and pads are removable and washable, and strap lengths can be trimmed for a customized fit.
Special Features
Rigid, Lightweight Frame
Delivers strong yet lightweight support for ACL recovery without adding unnecessary bulk.
Polycentric ROM Hinges
Hinges include adjustable flexion (0°–120°) and extension (0°–45°) stops to control knee movement throughout rehabilitation.
Medial-Lateral & Rotational Control
Bilateral uprights provide controlled stabilization with integrated valgus and varus angle adjustments.
Numbered Hook-and-Loop Straps
Four easy-to-identify straps (two thigh, two calf) simplify application and ensure consistent, secure placement.
Customizable, Easy-to-Clean Design
Removable and washable pads and straps, with trim-to-fit lengths for personalized comfort and hygiene.
Specifications
-
What’s Included: 1pc ACL Knee Brace.
-
Color: Black.
-
Size(s):
- Left & Right options
- Small, Medium, Large, X-Large
-
Weight: 1.153lbs
-
ROM Hinge Range: Flexion 0°–120°, Extension 0°–45°.
- Latex-free.
Sizes & Dimensions
-
Thigh: Measure 15cm (6”) above the medial condylar plateau.
-
Calf: Measure 12cm (5”) below the medial condylar plateau.
Product Files
FAQ
HCPCS Codes L1845 - L1852: Details and Uses
L1845: Knee orthosis, Double upright, thigh and calf, With adjustable flexion and extension joint (unicentric or polycentric), Medial-lateral and rotation control, With or without varus/valgus adjustment, Prefabricated item that has been trimmed, bent, molded, assembled, or otherwise customized to fit a specific patient by an individual with expertise.
L1852: Knee orthosis (KO), Double upright, thigh and calf, With adjustable flexion and extension joint (unicentric or polycentric), Medial-lateral and rotation control, With or without varus/valgus adjustment, Prefabricated, Off-the-shelf.
How can I Get the ACL Knee Brace?
The ACL Knee Brace is available to licensed medical professionals through the Vive Health Business Portal.
How do I clean the ACL Knee Brace?
- Hand wash with mild soap.
- Air dry flat.
- No bleach or harsh chemicals.
- Keep away from direct heat/sunlight.
