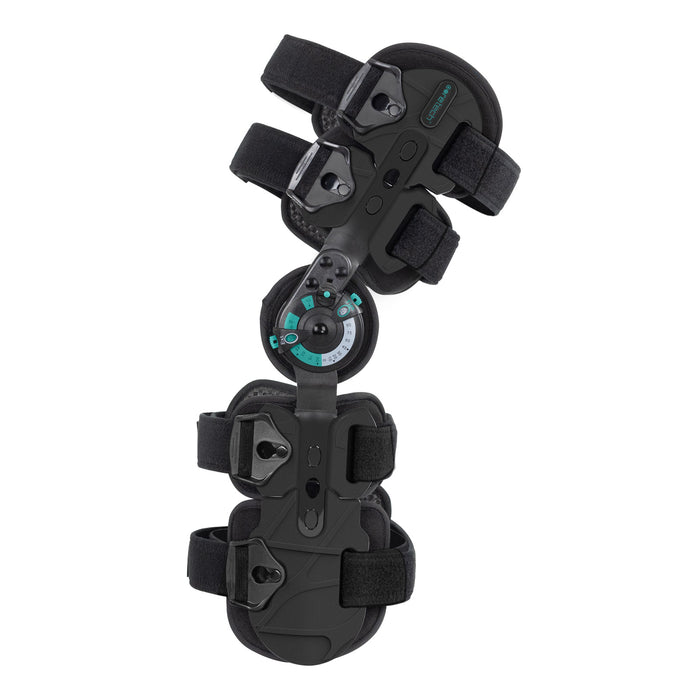

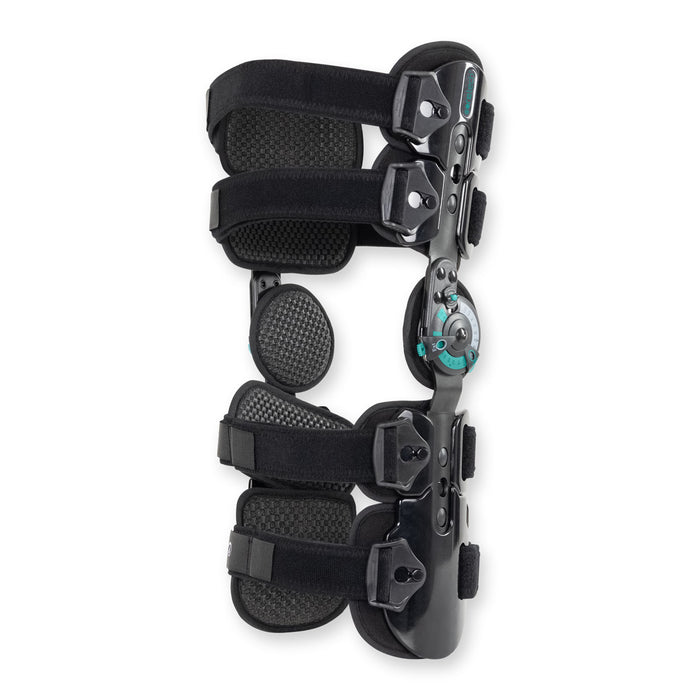

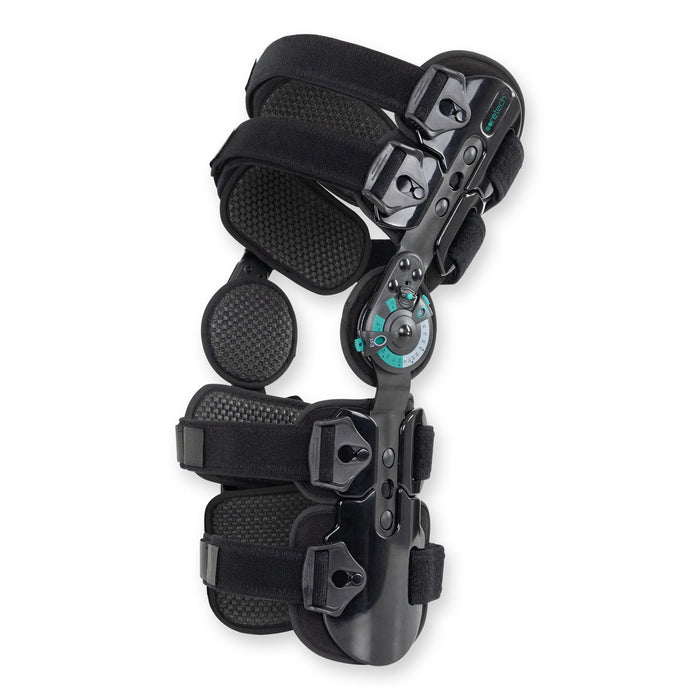

The Coretech ROM Knee Brace Elite is a professional-grade rehabilitative device designed for comprehensive knee support and controlled recovery. This versatile brace features precision angle adjustment with flexion settings from 0° to 120° and extension settings from -10° to 90°, making it ideal for post-surgical rehabilitation of ACL, PCL, MCL, and LCL injuries, as well as patella realignment and ligament strains. The universal design accommodates both left and right legs with tool-free length adjustment from 18" to 24", while the quick-release buckle system and numbered straps ensure proper application and secure fit. Premium features include a lightweight aluminum frame, removable non-slip padding, and trimmable straps for maximum comfort and stability during the recovery process.
Special Features
Complete Rehabilitative Support
Fully adjustable range of motion brace designed for post-operative recovery and rehabilitation, ideal for ACL, MCL, PCL, or LCL surgeries, patella realignment, and ligament strains.
Precision Motion Control
Bilateral range of motion dials with flexion settings (0° to 120°) and extension settings (-10° to 90°) for progressive recovery protocol.
Universal Design
Accommodates both left and right legs with adjustable length from 18" to 23.5" in 1" increments.
Secure Comfort Fit
Four numbered straps with quick-release buckles and trimmable lengths for customized compression.
Premium Construction
Lightweight aluminum frame with removable, non-slip padding for stability and comfort.
Specifications
-
What’s Included:
- 1x ROM Knee Brace Elite Coretech.
- Adjustable straps and padding.
- Owner's Manual.
-
Uses:
- Provides controlled support for post-operative recovery and rehabilitation. Designed for ACL, MCL, PCL, or LCL surgeries, patella realignment, and ligament injuries. For use under healthcare professional guidance for proper motion settings and usage duration.
-
Colors:
- Black with Pantone 2461C (Coretech teal).
-
Length Adjustment & Sizing:
-
Length Range: 18" to 24" (46 cm to 61 cm).
-
Adjustment Increment: 1 inch per click (via side buttons, both sides).
-
Coverage Required: Minimum 6" above and 6" below the knee.
-
Circumference — Above Knee: Up to 40".
-
Circumference — Below Knee: Up to 35".
-
Sizing Note: Brace ships pre-set to the smallest size. Must adjust before first use.
-
Range of Motion:
-
Flexion Range: 0°, 10°, 20°, 30°, 45°, 60°, 75°, 90°, 105°, 120°.
-
Extension Range: -10°, 0°, 10°, 20°, 30°, 45°, 60°, 75°, 90°.
-
Lock Positions: 45° Flexion | 15° Flexion | 90° Extension | 50° Extension | -10° Extension.
-
Hinge Type: Bilateral dual-axis (universal left/right).
-
Straps & Closure System:
-

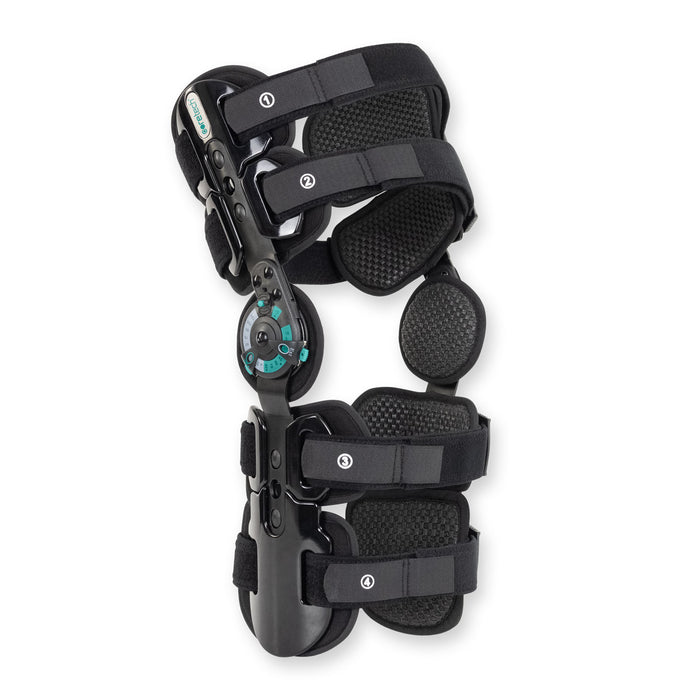

Number of Straps: 4 numbered straps with quick-release buckles.
-
Strap 1 (Upper Calf): Up to 35" circumference.
-
Strap 2 (Lower Calf): Up to 35" circumference.
-
Strap 3 (Lower Thigh): Up to 40" circumference.
-
Strap 4 (Top Thigh): Up to 40" circumference.
-
Customization: Trimmable — remove fastener, cut conservatively, reattach.
-
Application Order: Upper calf → lower calf → lower thigh → top strap.
-
Dimensions: 18.8" x 6.2" x 3.81" (48 x 16 x 9.7 cm).
-
Weight: 2.239 lbs (1.01 kg).
-
Materials: Lightweight aluminum | 20% Polyester | 35% Aluminum | 20% ABS | 18% Nylon | 5% PA66 | 2% PC.
Product Files
FAQ
HCPCS Codes L1832 - L1833: Details and Uses
L1832: Knee Orthosis, Adjustable Knee Joints (Unicentric Or Polycentric), Positional Orthosis, Rigid Support, Prefabricated Item That Has Been Trimmed, Bent, Molded, Assembled, Or Otherwise Customized To Fit A Specific Patient By An Individual With Expertise.
L1833: Knee Orthosis, Adjustable Knee Joints (Unicentric Or Polycentric), Positional Orthosis, Rigid Support, Prefabricated, Off-The Shelf.
How can I Get the ROM Knee Brace Elite?
The ROM Knee Brace Elite is available to licensed medical professionals through the Vive Health Business Portal.
How do I Clean the ROM Knee Brace Elite?
Pads & Straps:
- Remove from brace before cleaning.
- Hand wash with cold water and mild detergent.
- Air dry flat — do not use heat.
- Ensure completely dry before reattaching.
Hinge & Frame:
- Wipe with alcohol-based disinfectant wipe.
- Air dry completely.
- Do not submerge in water.
- Check hinge movement after cleaning.
